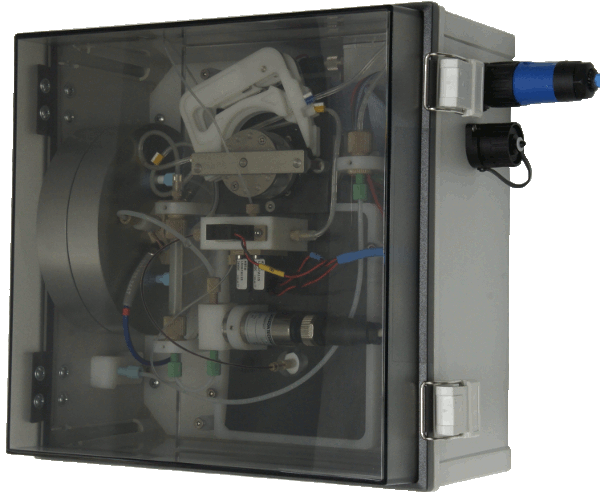

SP101-LB High Accuracy Lab / On ship pH sensor

pH Sensor SP101-LB
Download
SP101-LB datasheet

High Accuracy Laboratory / On ship pH sensor

The SP101-LB is a rugged and extremely stable pH sensor for on ship and laboratory applications. Its construction guarantees accurate and stable measurements under all conditions. Thanks to its high measurement rate (20 measures per minute) the system can be used for continuous flow measurements. The SL101-LB can be connected to an optional external conductivity / temperature sensor and can be thermostatized through two 1/2” barbed fittings.

Summary of specifications

pH Range: 6.8 – 9 in sea water
Typical measurement time: < 3 minutes
Precision: < 0.002 pH units
Accuracy: ±0.005 pH units
Indicator life: 10,000 measurements (with 250 ml bag)
Temperature sensor accuracy: ±0.1ºC (-5ºC to +35ºC)
Host interface: RS232
Operating supply voltage: 9 – 18 Vcc
Overall Size: 300x340x185 mm (h x w x d)
Weight: 7,2 Kg
